2D Scanning Engine
Easily and instantly read 2-dimensional barcode symbologies such as the common PDF 417, Data Matrix, QR, and Micro QR. 1D barcode symbologies are supported as well making the Nuscan 5200 truly reliable.
Antimicrobial
The scanner is made with antimicrobial substances to keep away germs and viruses. With regular cleaning, the scanner will undoubtedly maintain your environmental hygiene.
Waterproof
The scanner is made with antimicrobial substances to keep away germs and viruses. With an impressive IP67 rating, the Nuscan 5200 is also completely waterproof so you are wash it for regular cleaning.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.
Long Scanning Range
Equipped with its CMOS sensor the device has a scanning range up to18 inches offering fast and accurate scanning results.
Drop Protection
With its drop protection design, the NuScan 5200 is less likely to become damaged due to accidental drops.

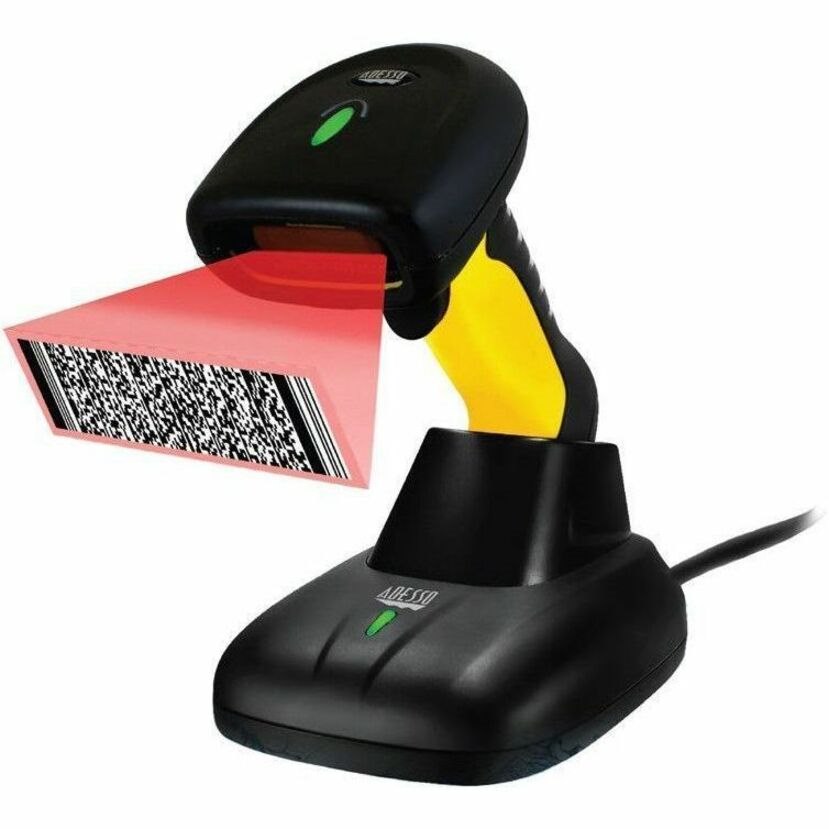

The Adesso NuScan 5200 is compatible with a wide range of 1D and 2D barcode symbologies and is the 2.4GHz wireless version of the NuScan 5200TU. With the built-in USB receiver inside its cradle, the NuScan 5200TR is completely plug and play. NuScan 5200TR is compatible with major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. Built with waterproof and antimicrobial substances, the NuScan 5200TR can be cleaned periodically to provide good hygiene. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TR is truly your ultimate barcode scanner.
- General Information
- Manufacturer
- Adesso, Inc
- Manufacturer Website Address
- http://www.adesso.com
- Brand Name
- Adesso
- Packaged Quantity
- 10 / Carton
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
1D:
- UPC-A/E
- EAN13/8
- Code 128
- GS1-128
- Code 39(Plain & Full ASCII)
- Code 93
- Code 11
- Code 25(ITF/Industrial/Matrix/IATA Standard)
- Codabar
- MSI/MSI Plessey
- GS1 DataBar
2D:
- DataMatrix
- QR Code
- Micro QR Code
- PDF417
- Light Source
- LED
- Image Sensor Type
- CMOS
- Imager
- Scan Pattern
- Bi-directional
- Scanner Range
- Long Range
- Scanning Distance
- 457.20 mm
- Features
- Notification LED
- Beep
- Reading Angle (Pitch)
- 45°
- Reading Angle (Roll)
- 50°
- Motion Tolerance
- 609.60 mm/s
- Maximum Ambient Light
- 100000 lux
- Drop Specification
Withstanding 7m freefall drops
- Minimum Print Contrast
- 30%
- Minimum Element Resolution (Code 39)
- 0.13 mm
- Minimum Element Resolution (DataMatrix)
- 0.25 mm
- Image Sensor Resolution
- 640 x 480
- Network & Communication
- Bluetooth
- Yes
- Radio Frequency
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Environmental Conditions
- Operating Temperature
- -20°C to 50°C
- Storage Temperature
- -40°C to 70°C
- Humidity (Non-condensing)
- 5% to 95%
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Durability
- Water Proof
- Drop Resistant
- Spill Resistant
- Shock Resistant
- Height
- 100 mm
- Width
- 72 mm
- Length
- 175 mm
- Weight (Approximate)
- 160 g
- Miscellaneous
- Ingress Protection (IP) Rating
- IP67
- Application/Usage
- Retail
- Warehouse
- Library
- Healthcare
- Pharmacy
- Platform Supported
- Smartphone
- Windows
