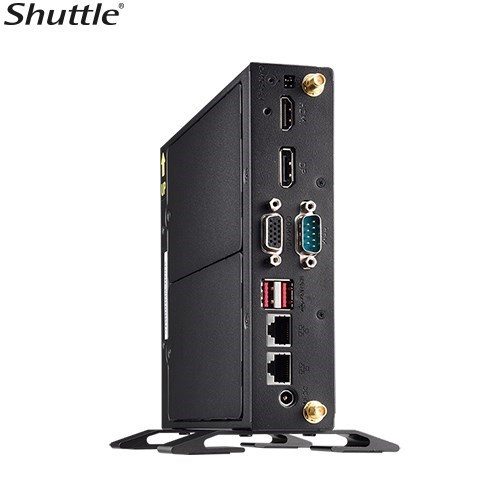

Shuttle Ds20u V2 Slim Mini PC 1L Barebone - Intel Celeron 5205U, Fan-Less, 2X Lan , RS232/RS422/RS485, Hdmi, DP, Vga, Vesa Mount, 65W Adapter

  • Part: 1247738
  • Model: DS20U V2
$630.91

Availability

In Stock

The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one tradi-tional D-Sub/VGA connector. The built-in Intel 'Comet-Lake-U' processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5' drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5' bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia. Intel Celeron 5205U (1,9 GHz, 2 cores, 2 threads, 2 MB cache) Intel UHD Graphics Up to 64 GB of DDR4 memory 1× NVMe, 1× SATA 2.5', card reader 1× HDMI 2.0b, 1× DisplayPort 1.2, 1× VGA Two M.2 slots (1× M.2-2280, 1× M.2-2230) 2× RJ45 (2.5Gb & 1Gb), WLAN-ready, 4G-ready 4× USB 3.2 Gen 1 (5 Gbit), 4× USB 2.0, 1× COM Remote power-on connector, always-on jumper Wall/VESA mount included Optional DIN-Rail/19' mount
